IP Touchscreens

Control your entire installation from our touchscreens, your smartphone or your favourite voice assistant

Z100 Touchscreen on wall
10" HD color display
180 controls via voice & app
2 thermostats & sensors
Video intercom & network ready
Z100 Screen

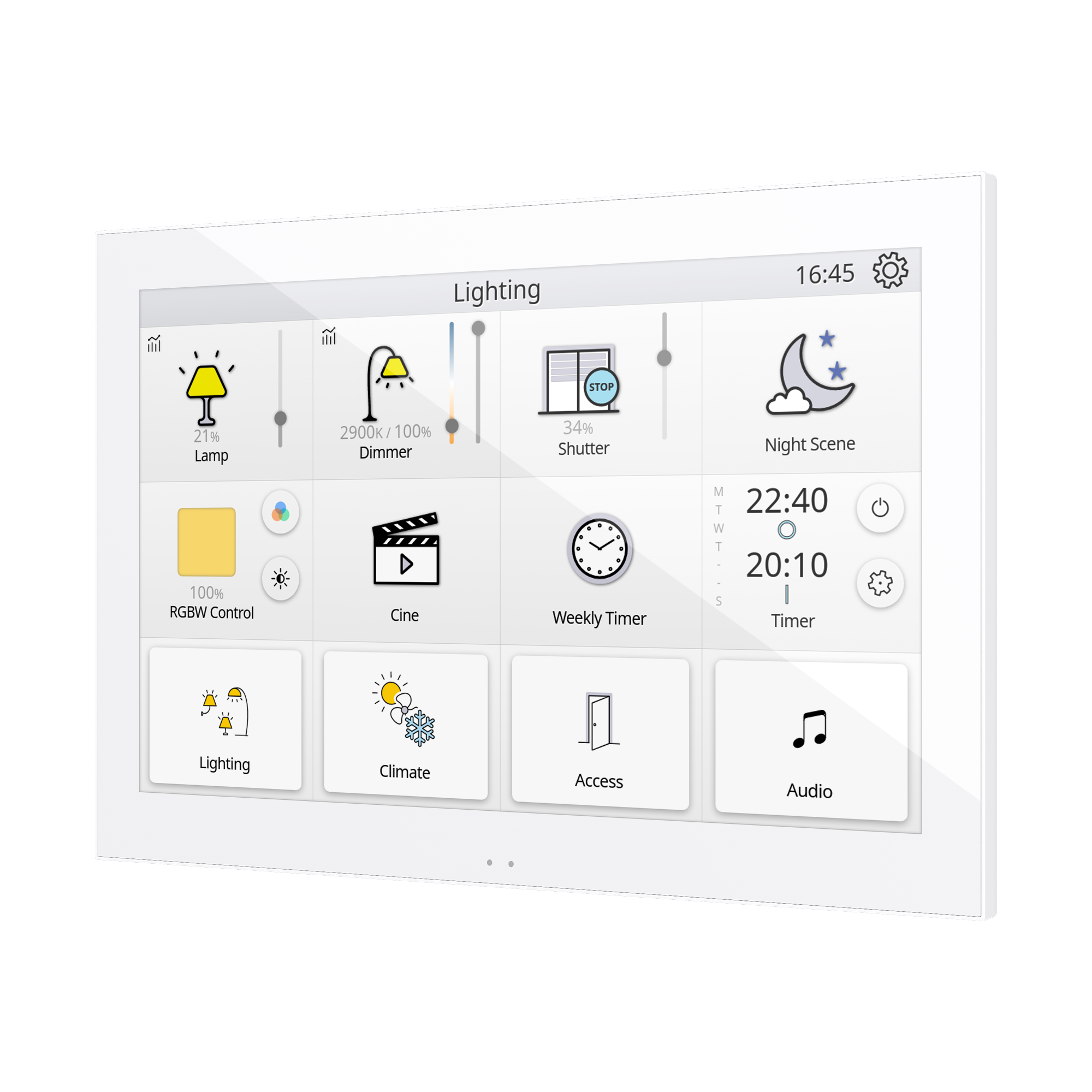

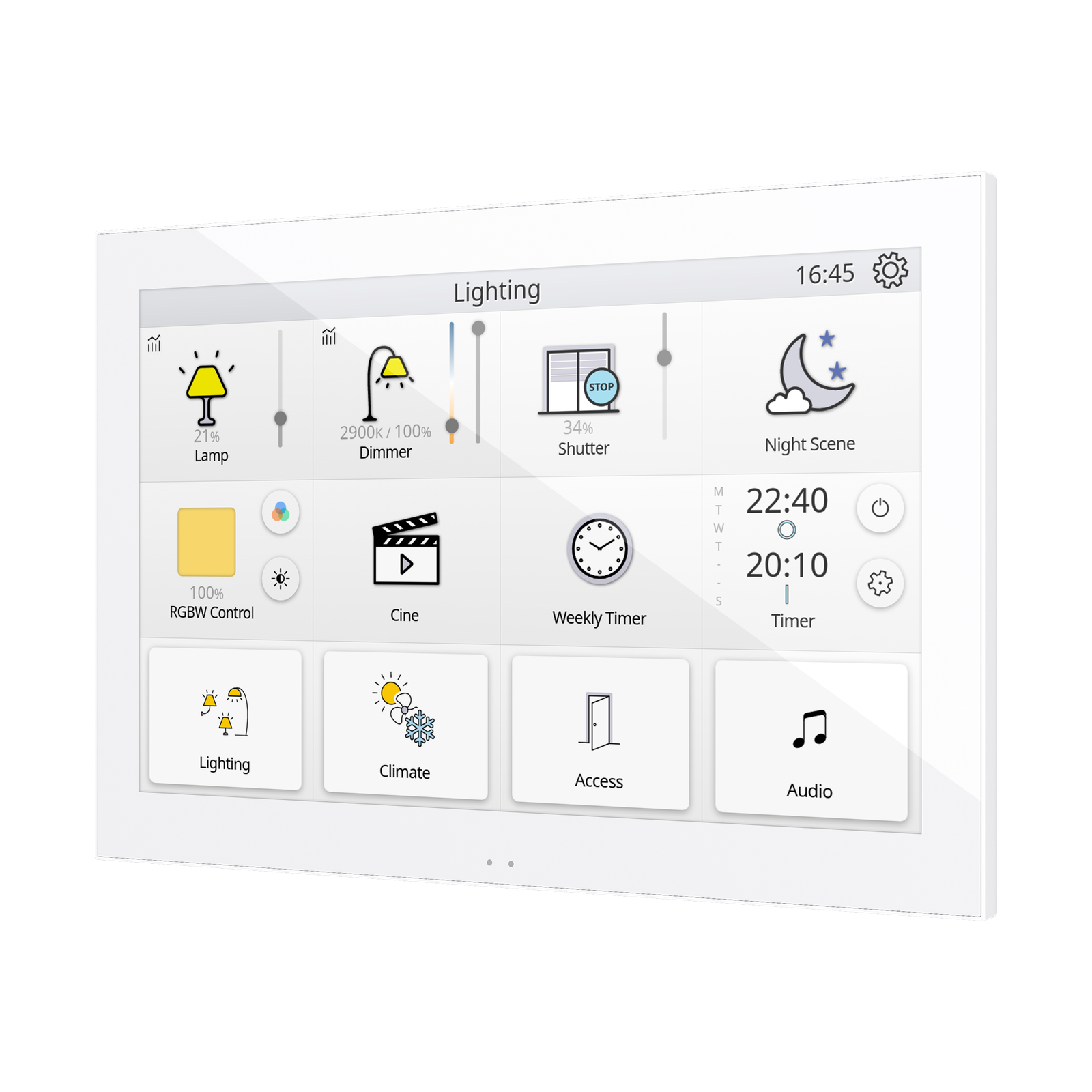

Z100

10 inches of pure design for the most demanding projects
Colour

Capacitive Touch panel with 10”, 16 million color LCD display and 1280×800 pixel resolution for a integral control of the home, room hotel or any other kind of installation thanks to its 12 fully customizable pages, complying with a timeless and minimalist aesthetic. It includes an ambient luminosity sensor for brightness automatic adjustment as well as a proximity sensor for a quick start when detected activity, which can also launch a configured screensaver. Moreover, it incorporates 2 thermostats and 4 analogue-digital inputs. It has USB and Ethernet ports for program update.

Z70 Screen

Z70

A true leap in quality: 7 inches and 144 controls
Colour

Capacitive touch panel with 7” color display and 144 controls, with 12 fully customizable pages, keeping a timeless and minimalist aesthetic. It includes an ambient luminosity sensor for brightness automatic adjustment as well as a proximity sensor for a quick start when detected activity, which can also launch a configured screensaver. It incorporates 2 independent thermostats and 4 analogue-digital inputs, as well as USB and Ethernet ports for firmware updates.

Z50 Screen

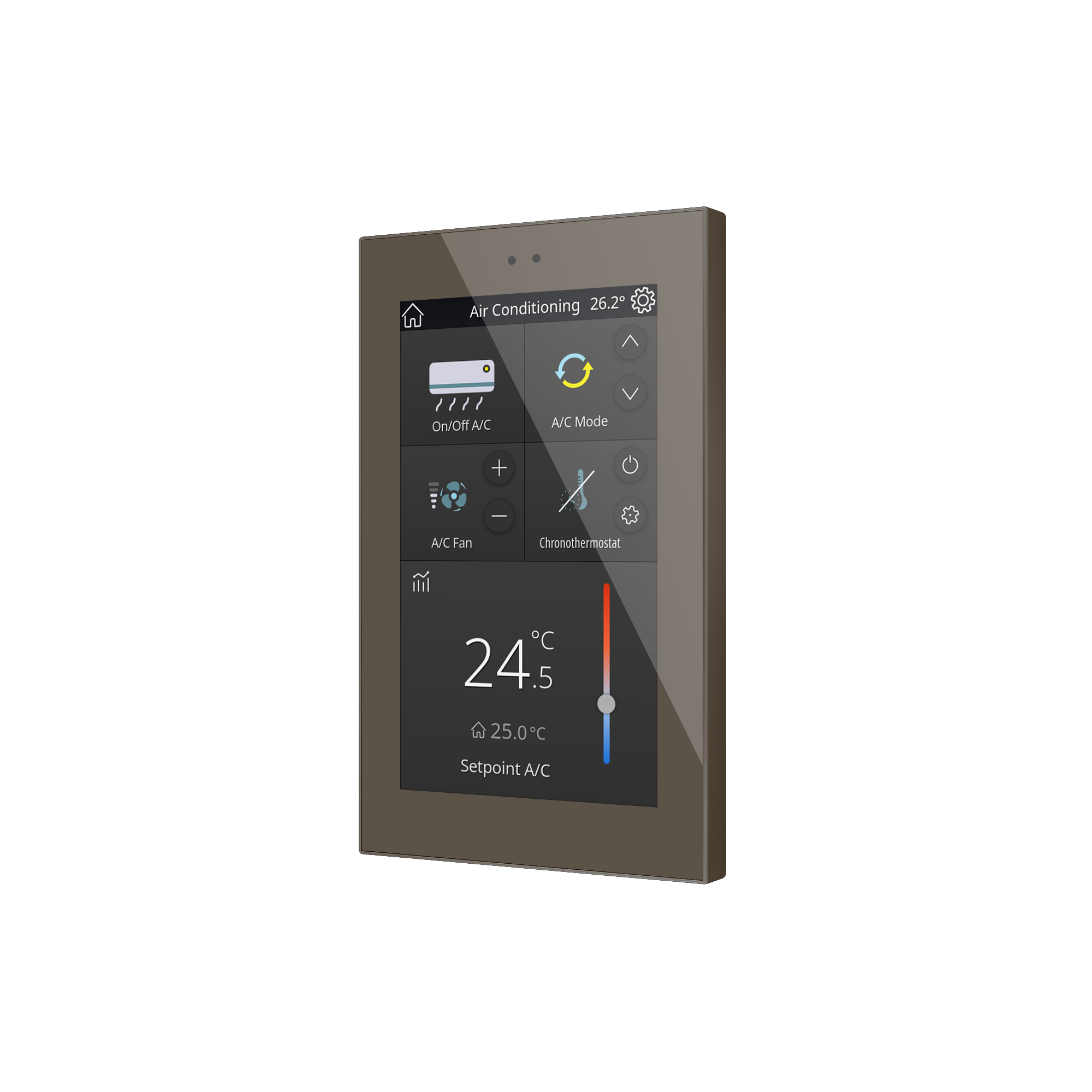

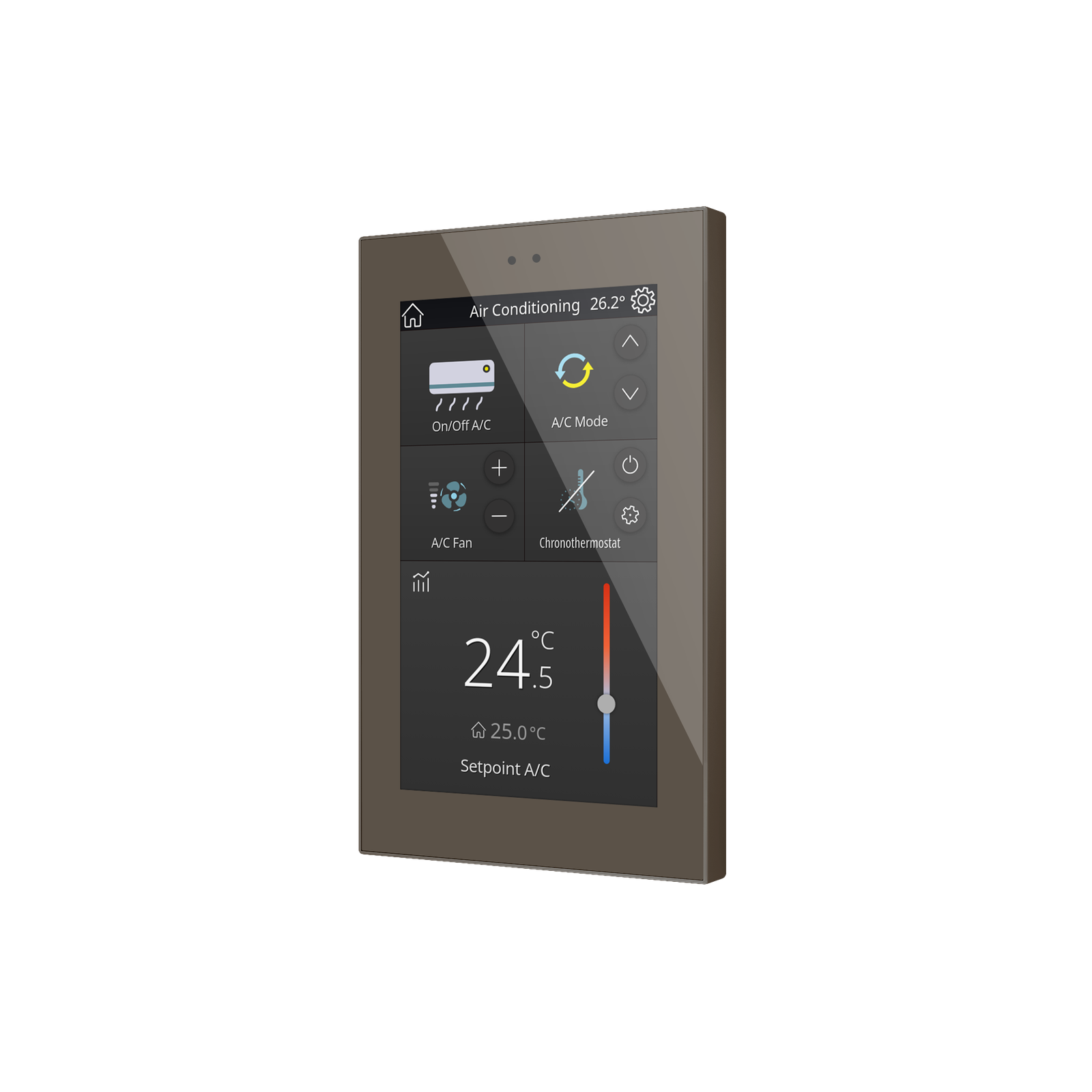

Z50

The heart of the installation in a compact format
Colour

Color capacitive Touch panel with 5” display in portrait or landscape, and a resolution of 480 x 854 pixels which allows a complete control of the installation thanks to its 12 fully customizable pages while maintaining a minimalist aesthetic. It has 2 analogue-digital inputs, internal temperature probe and 2 independent thermostats. It also incorporates a proximity sensor to detect activity for a quick start, as well as disabling the screensaver if configured. Moreover, it incorporates USB and Ethernet ports for program update.

Power, connectivity and control — your way

IP-connected touchscreens designed to get the most out of your installation.

Woman interacting with Z100

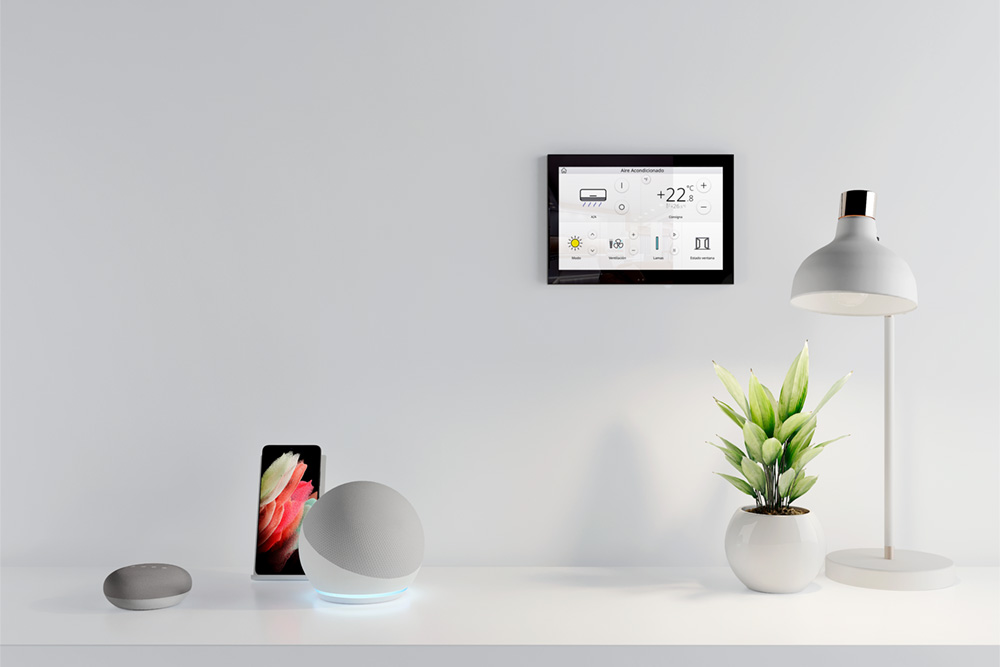

Z100 mounted next to lamp

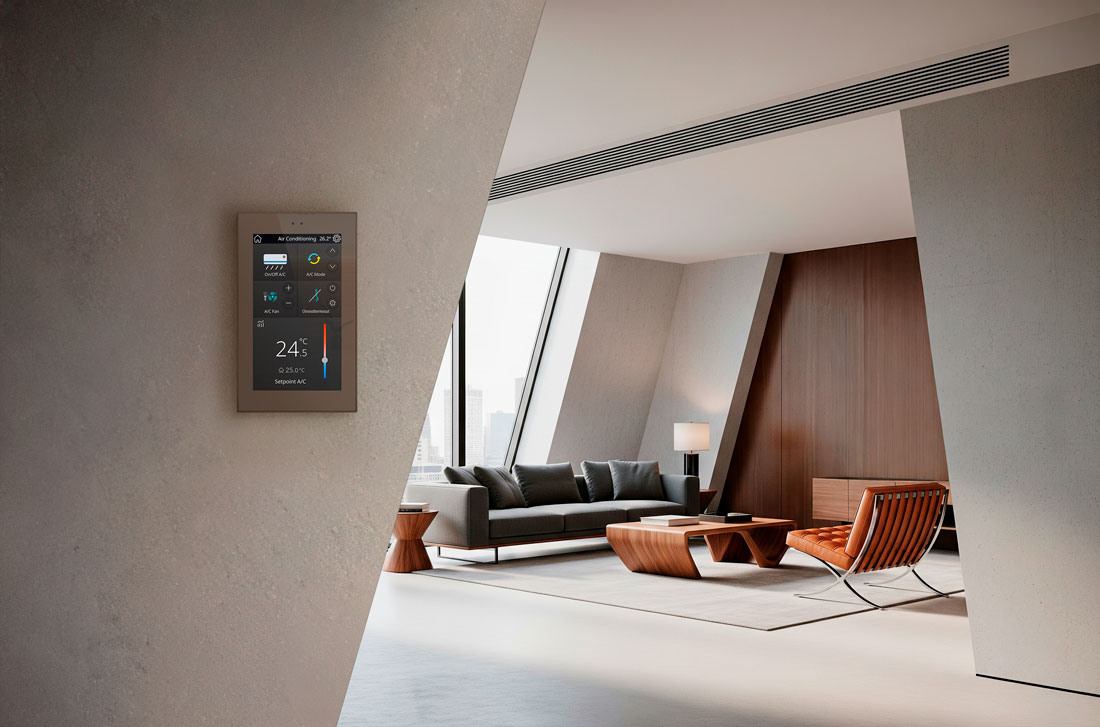

Z50 vertical mounting

Choose the IP touchscreens that best suits you

Z100 Z70 Z50
Screen size 10" 7" 5"
Controls and indicators 180 144 96
Thermostats 2 2 2
Temperature sensor -
Analogue and digital inputs 4 4 2
Installation in single back box - -
Installation in double back box
KNX Secure
Intelligent Control Panels

Zennio IP Touchscreens – Complete Building Control

  • User interface with full KNX functionality
  • Remote control via smart devices
  • Modern design and high-resolution display

Why Choose Zennio IP Touchscreens?

Zennio IP touchscreens serve as the central hub for your intelligent building control. These devices perfectly blend aesthetics with functionality, allowing users to effortlessly manage lighting, climate, shading, and audio systems through a single, intuitive interface.

Leveraging advanced IP technology, Zennio displays ensure seamless integration with the KNX ecosystem, enabling users to monitor and control building functions both locally and remotely. This makes them the ideal choice for luxury residential projects and high-end commercial spaces where both design and performance are paramount.

By choosing Zennio, you gain more than just a control panel; you get the ability to fully personalize the interface to your specific needs, ensuring that managing your space is simple, intuitive, and efficient for every user.
